AD10

Featured with rich functions such as Vehicle OBD System Diagnosis,Personalized Instrument, Vehicle Performance Test, Big Data Ranking and DIY Mode (ELM327), AD10 can help ordinary car owners to check at any time whether the vehicle is out of order, display the cause of the fault and maintenance suggestions, monitor the vehicle status in real time, find out safety hazards early to ensure safe driving.

about-img

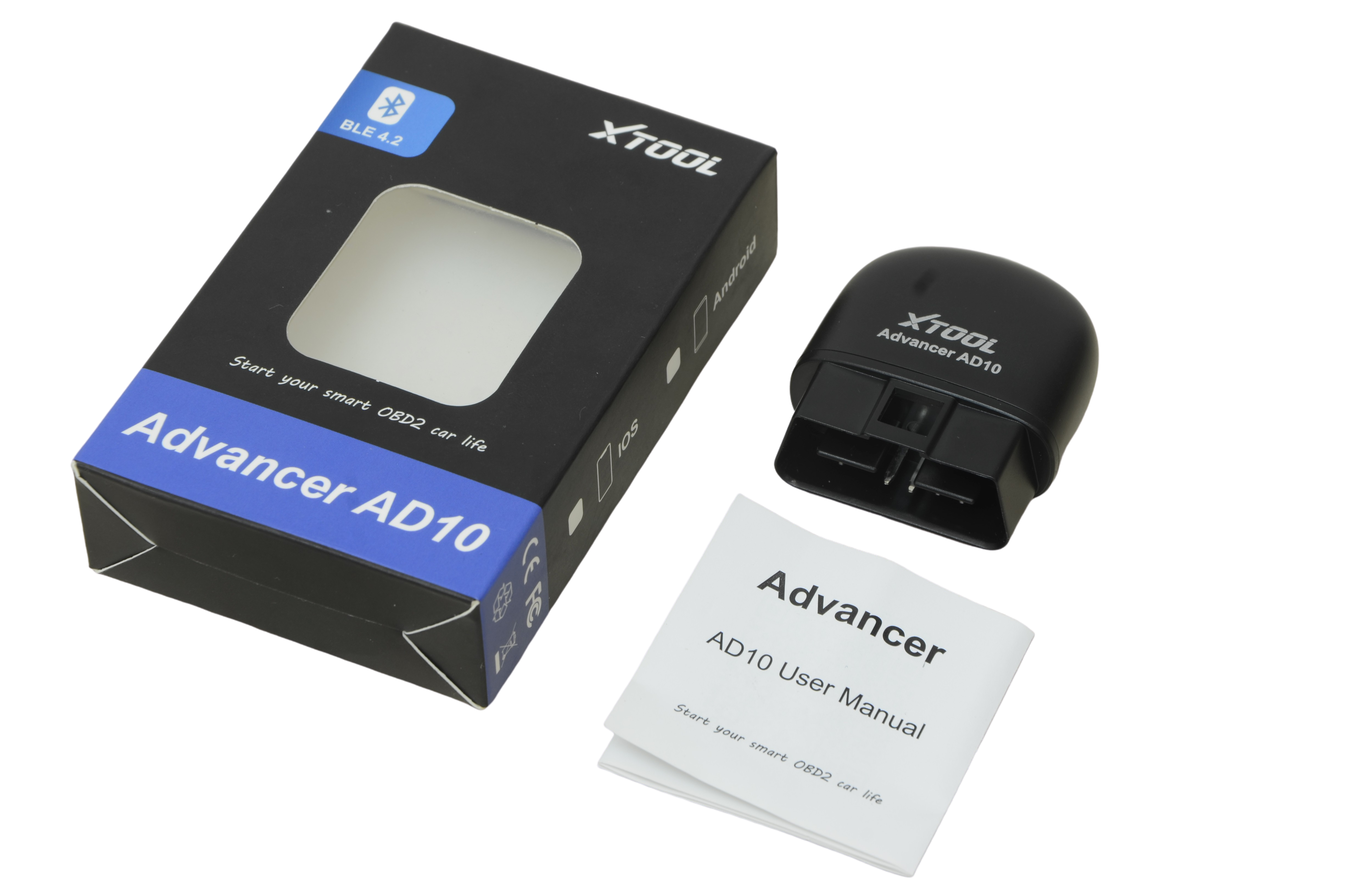

Parameters and packing list

Parameters

Processor: ARM Cortex-M0

Interface: OBDII standard interface

Bluetooth: BLE 4.2

Support Bus: CAN_BUS, K_LINE, L_LINE, SAE-J1580-VPW SAE-J1580-PWM

Voltage: DC 9V-28V

Operation Temperature: -20~+60ºC

Power Counsumption: ≤1W

Storage temperature: -40~+85ºC

Software

Advancer APP

Main Units

AD10

Accessories

User Manual
