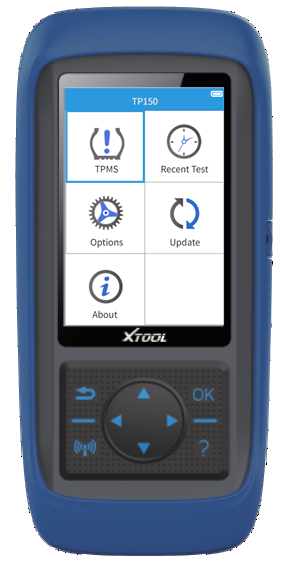

TP150 Tire Pressure Diagnostic Device

TP150 is a special inspection device launched by Xtool for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models.

about-img


TP--TSAM
TP--TSAS
TP--TSCH
TP--TSEU
DISPLAY PROGRAM--TP150

Parameters and packing list

Parameters

Display Screen: 320x480 dpi TFT colorful screen

battery capacity: 3000mAh 3.7V lithium polymer battery

Communication method: Wired

Interface: USB TypeC、DB15

Working Temperature: -10ºC~60ºC

Storage temperature: -20ºC~70ºC

Weight: 0.4KG

Size: 200×92×33mm

Main Units

  • TP150
  • TS100 (*2)
  • Charger

Test Connectors

  • OBD II
  • USB TYPE-C

Accessories

  • User Manual
  • Tool case
  • Certificate of quality
  • Packing list
