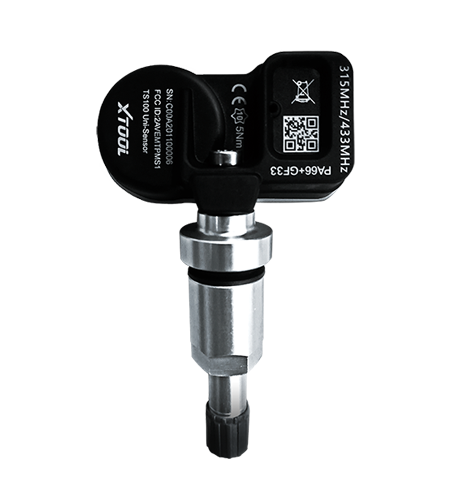

TS100 Programmable Universal Tire Pressure Sensor

TS100 is a general-purpose programmable tire pressure sensor developed by Xtool. It can replace the original sensor of vehicles equipped with TPMS. About 99% of the models on the general market are suitable. It integrates 315MHz and 433MHz dual frequency. It can be activated, can be programmed unlimitedly, can be matched and can monitor tire pressure in real time, perfectly built for your driving safety.

about-img


Parameters and packing list

Parameters

Battery Life: ≥5 years

Size: 46.4mm×16.2mm×25mm

Working Temperature: -40ºC-105ºC

Weight : 12g

Waterproof Level : IP67

Housing : PA66+GF30

Pressure monitoring range: 0~900kpa

Pressure reading accuracy: ±10kpa

Main Units

TS100 (battery built inside)

Accessories

  • User Manual
  • Package Box
  • Packing List
  • Certificate of quality
